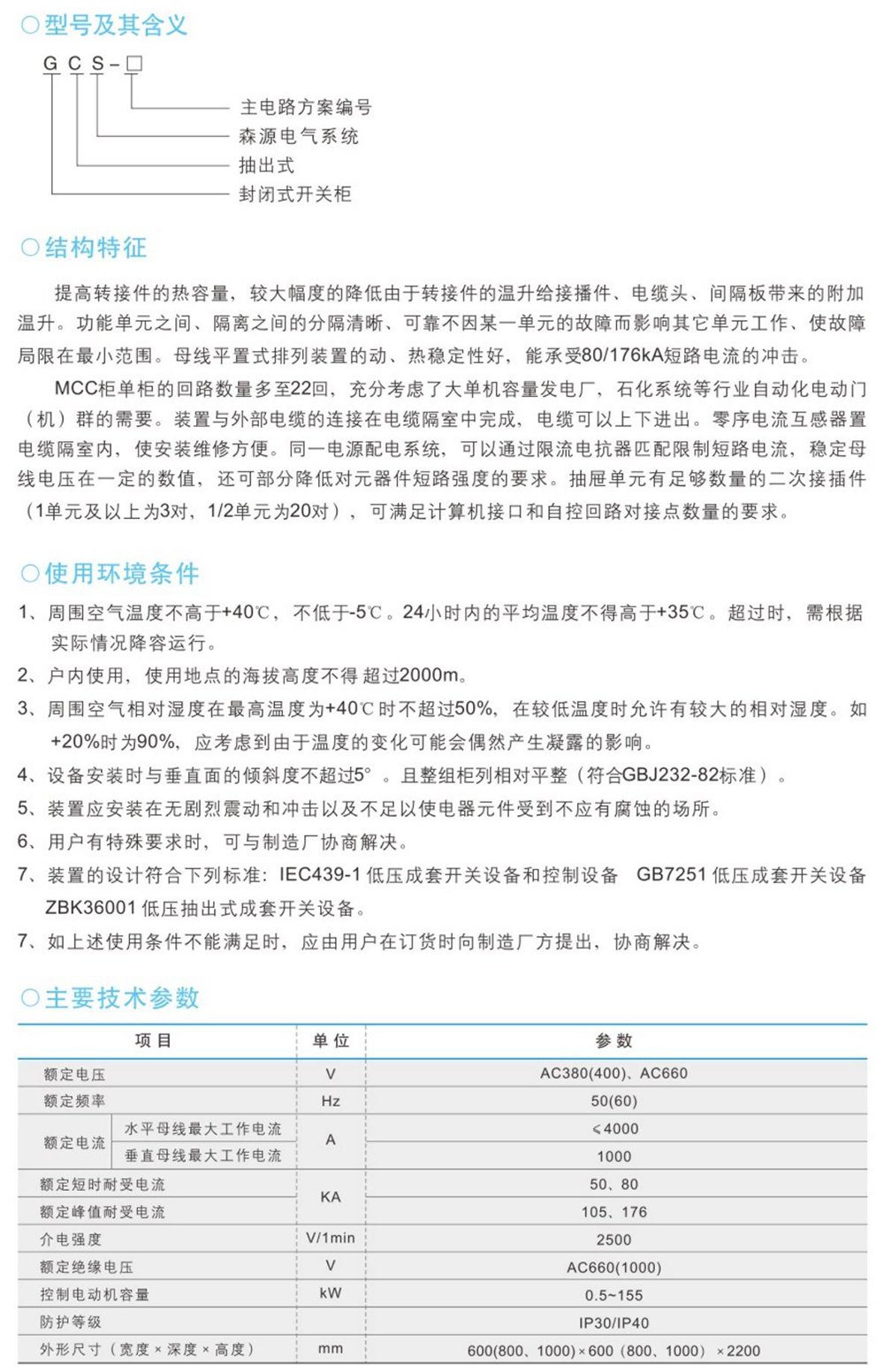

GCS型低壓抽出式開關柜。(似下簡稱裝置)是兩部聯合設計組根據行業主管部門.廣大電力用戶及設計單位的要求設計研制出的符合國情，具有較高技術性能指標，能夠適應電力市場發展需要并可與現有引進產品競爭的低壓抽出式開關柜。該裝置目前已被電力用戶廣泛選用。裝置適用于發電廠、石油?；?，冶金，紡織，高層建筑等行業的配電系統。在大型發電廠、石化系統等自動化程度高要求與計算機接口的場所，作為三相交流頻率為50(60)Hz.額定工作電壓380(400)V. (660)V， 額定電流為5000A及以下的發。供電系統中的配電、電動機集中控制。無功功率補償使用的低壓成套配電裝置。裝置的基本組織形成見附圖1.裝置的設計符合下列標準IEC439-1《低壓成套開關和控制設備》GB7251《低壓成套開關設備》
The GCS type low-voltage withdrawable switchgear (hereinafter referred to as the device) was designed and developed by a joint design team in accordance with the requirements of the industry authorities, the majority of power users, and design units. It is a low-voltage withdrawable switchgear that conforms to the national conditions, has high technical performance indicators, can meet the needs of the power market development, and can compete with the existing imported products. Currently, this device has been widely adopted by power users. The device is applicable to the power distribution systems in industries such as power plants, petroleum, chemical industry, metallurgy, textiles, and high-rise buildings. In places with high automation requirements and computer interfaces in large power plants and petrochemical systems, it is used as a low-voltage complete distribution device for power supply, motor centralized control, reactive power compensation in the power distribution systems with a three-phase AC frequency of 50 (60) Hz, a rated working voltage of 380 (400) V (660) V, and a rated current of 5000 A or less. The basic structure of the device is shown in Figure 1. The design of the device complies with the following standards: IEC 439-1 "Low-voltage complete switch and control equipment" and GB 7251 "Low-voltage complete switchgear".
